Unity2019与Android混合开发

0. 开始前的版本对齐

Unity版本：Unity2019.3.4f1
AndroidStudio版本：3.5.3

1. Unity – 准备项目

新建项目

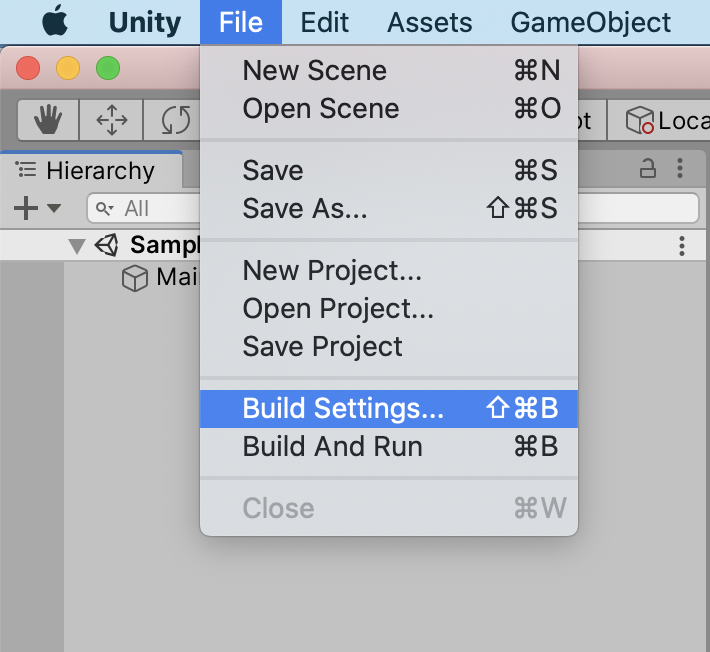

打开File -> Build Setting
切换工程模式

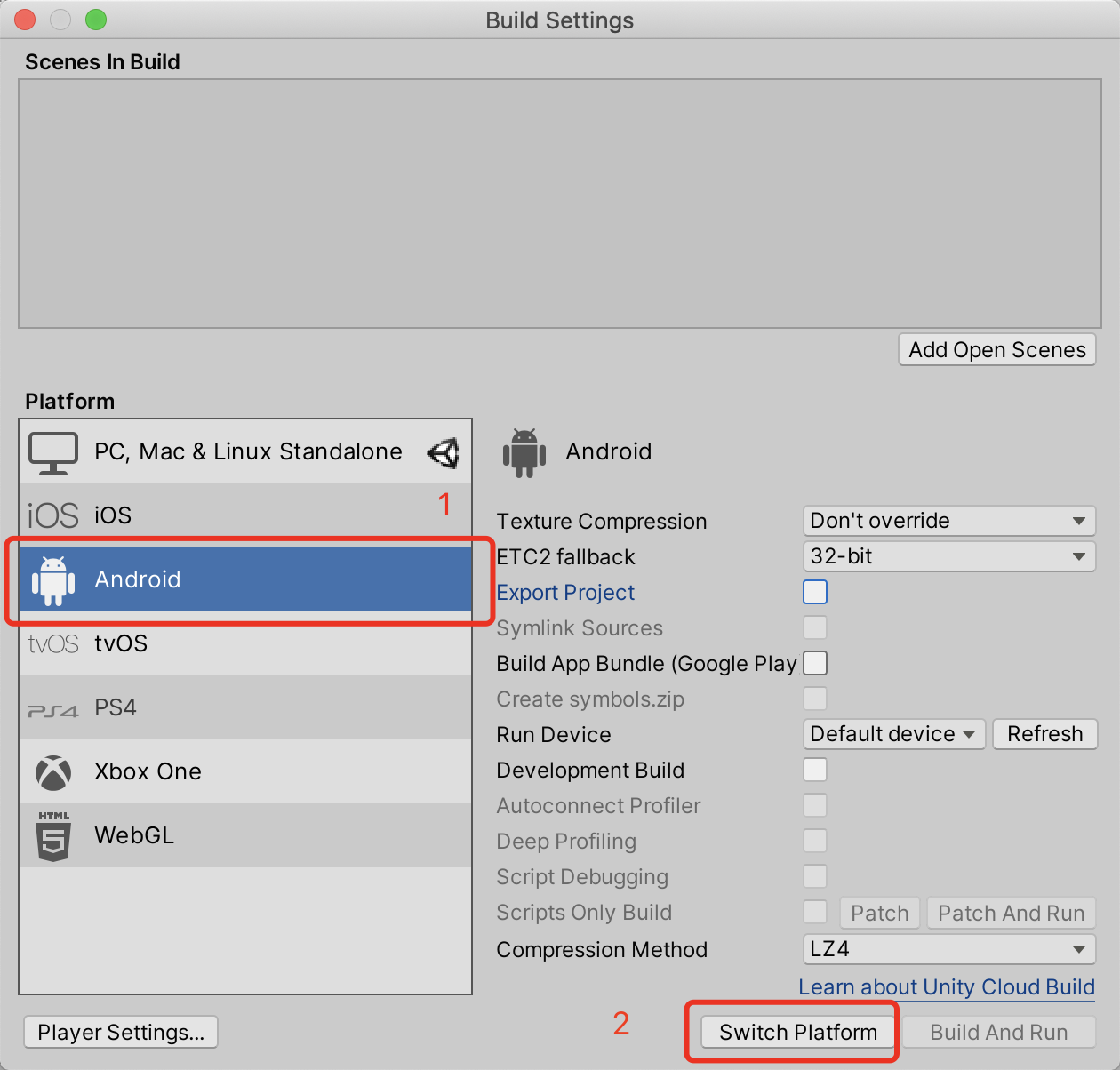

首先选择Android Platform，然后点击Switch Platform切换工程模式。

切换工程模式

导出Android工程

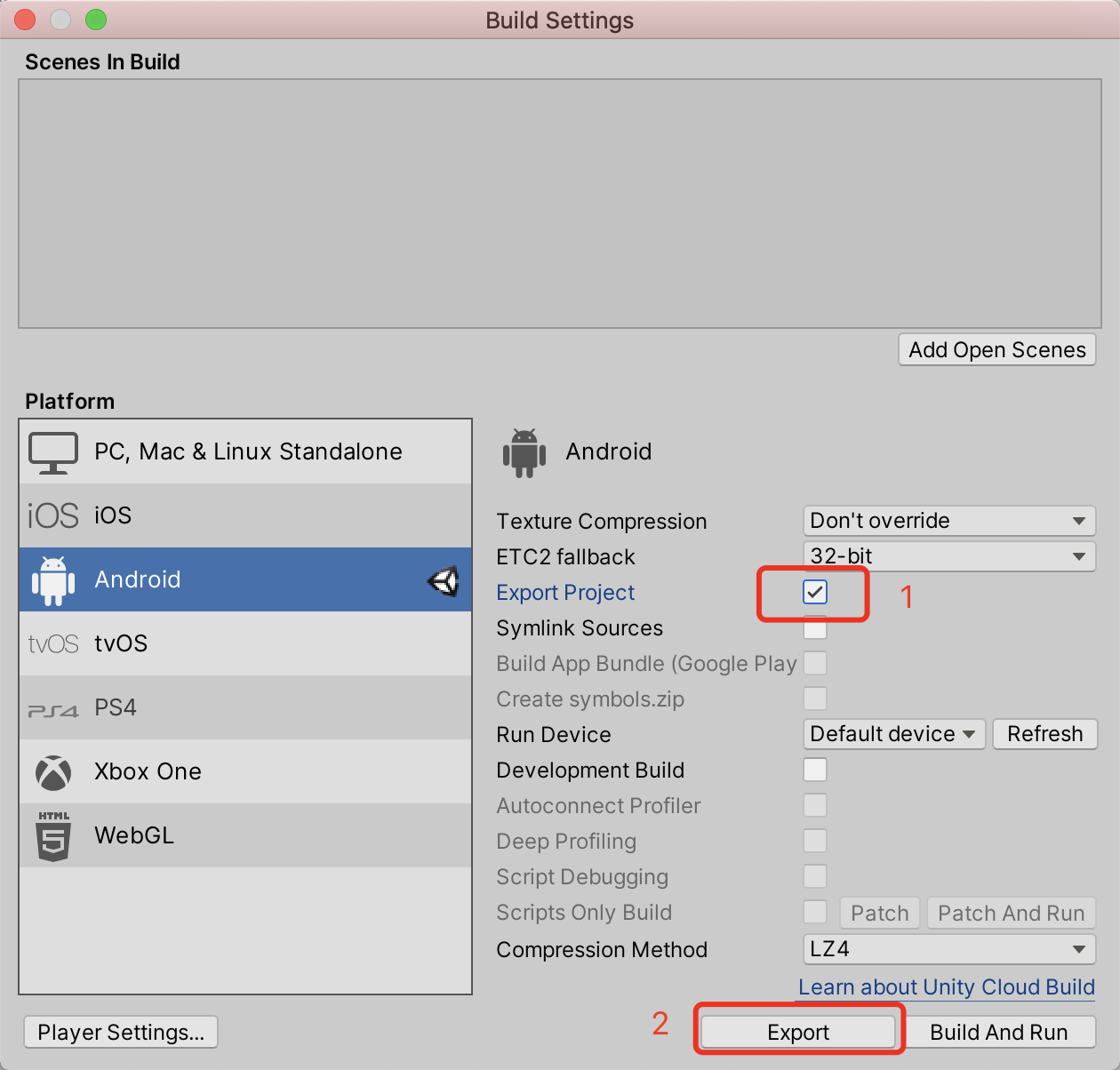

先勾上Export Project，否则下方的Export按钮会是一个Build，点击后Unity会直接导出一个Apk文件，而并不是一个Android Studio项目。
点击Export后，选择保存位置后会成功输出一个Android Studio项目，此时Unity的操作告一段落。

导出工程

2. Android 打开项目

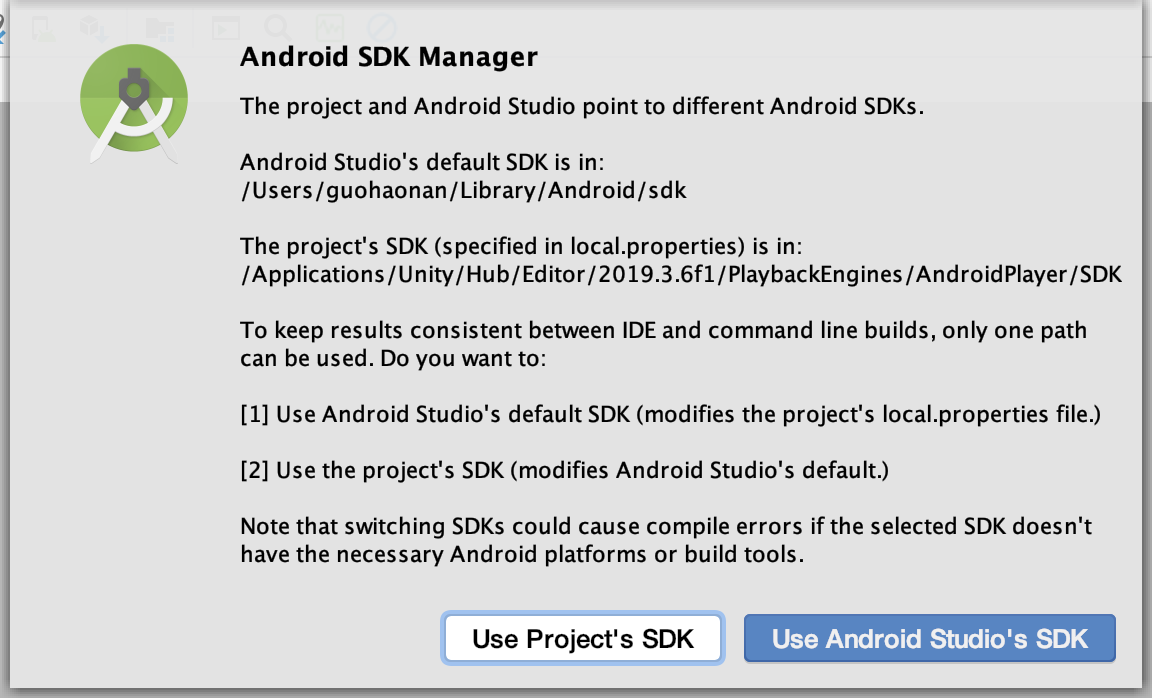

在使用Android studio 打开项目时，会跳出一个选择SDK的选项，此处我选择使用Android Studio’s SDK。Project’s SDK是Unity提供的，我觉得用此SDK可能对原生开发会有一定的影响。我并没有使用Project’s SDK进行验证。

sdk 选择

然后在弹出的Gradle 同步提示框中点击OK后项目就开始同步，如果无错误就可以进行开发了

3. Android 项目结构

Gradle同步完成后，可以看到以下目录（从Android视图切换为了Project）

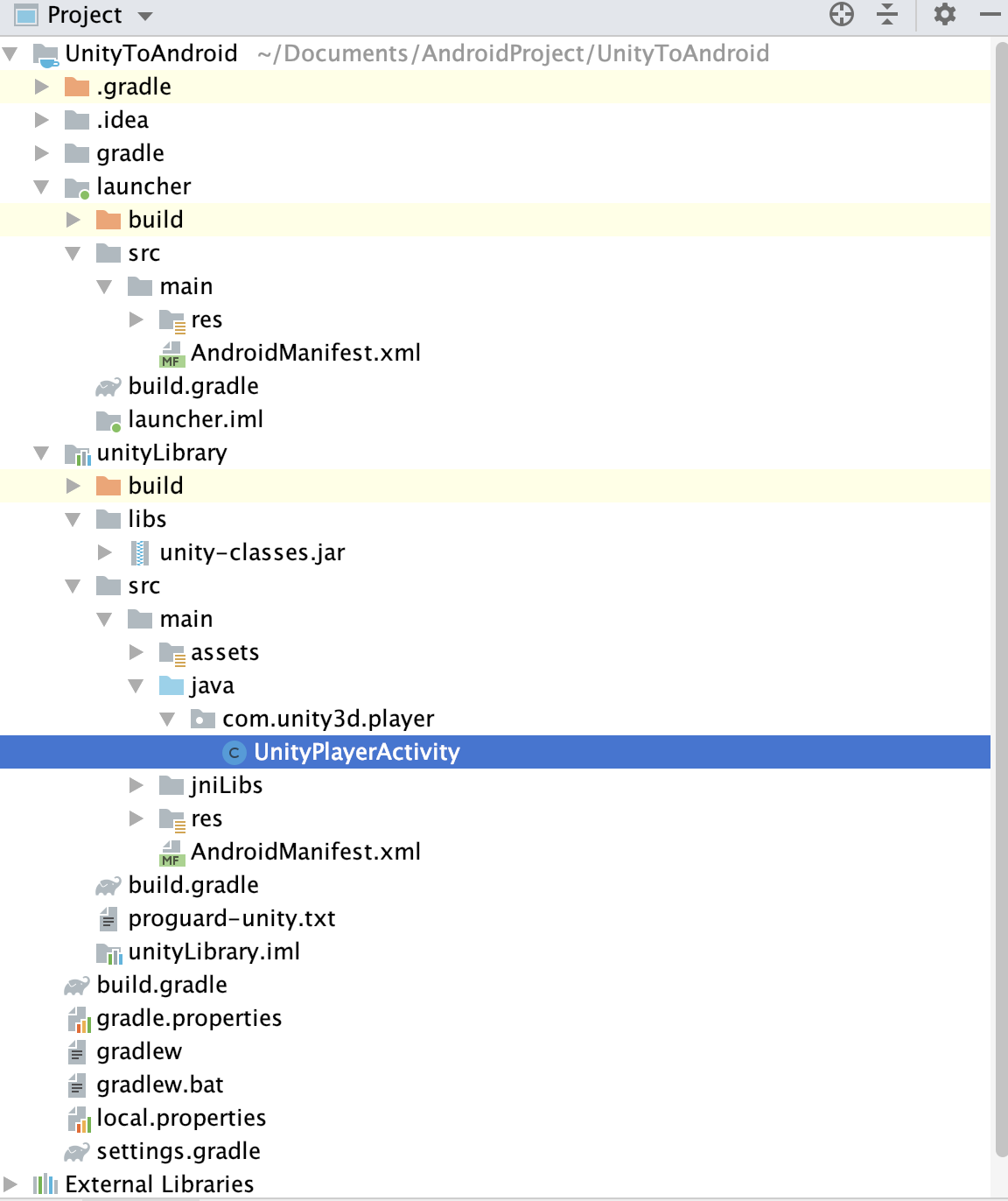

项目列表

其中launcher为平时Android开发中app主module，推荐在launcher主module中开发新的逻辑。（java目录需要自行创建）。

unityLibrary为Unity生成的子module。
在unityLibrary中包含一个UnityPlayerActivity的示例Activity，在不进行修改任何代码的时候默认启动的Activity就是这个UnityPlayerActivity。(可以在AndroidManifest中看到将这个activity配置成了启动Acitivity)

而在unityLibrary module中的lib目录中可以看到有一个unity-classes.jar，一个非常重要的类UnityPlayer就是来自这个jar包。如果之前已经在Unity项目中添加过一些Android插件，在lib目录下也会出现这些其他的lib包。

那么我们来看下UnityPlayerActivity这个类

// GENERATED BY UNITY. REMOVE THIS COMMENT TO PREVENT OVERWRITING WHEN EXPORTING AGAIN
package com.unity3d.player;

import android.app.Activity;
import android.content.Intent;
import android.content.res.Configuration;
import android.graphics.PixelFormat;
import android.os.Bundle;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;
import android.os.Process;

public class UnityPlayerActivity extends Activity implements IUnityPlayerLifecycleEvents
{
    protected UnityPlayer mUnityPlayer; // don't change the name of this variable; referenced from native code

    // Override this in your custom UnityPlayerActivity to tweak the command line arguments passed to the Unity Android Player
    // The command line arguments are passed as a string, separated by spaces
    // UnityPlayerActivity calls this from 'onCreate'
    // Supported: -force-gles20, -force-gles30, -force-gles31, -force-gles31aep, -force-gles32, -force-gles, -force-vulkan
    // See https://docs.unity3d.com/Manual/CommandLineArguments.html
    // @param cmdLine the current command line arguments, may be null
    // @return the modified command line string or null
    protected String updateUnityCommandLineArguments(String cmdLine)
    {
        return cmdLine;
    }

    // Setup activity layout
    @Override protected void onCreate(Bundle savedInstanceState)
    {
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        super.onCreate(savedInstanceState);

        String cmdLine = updateUnityCommandLineArguments(getIntent().getStringExtra("unity"));
        getIntent().putExtra("unity", cmdLine);

        mUnityPlayer = new UnityPlayer(this, this);
        setContentView(mUnityPlayer);
        mUnityPlayer.requestFocus();
    }

    // When Unity player unloaded move task to background
    @Override public void onUnityPlayerUnloaded() {
        moveTaskToBack(true);
    }

    // When Unity player quited kill process
    @Override public void onUnityPlayerQuitted() {
        Process.killProcess(Process.myPid());
    }

    @Override protected void onNewIntent(Intent intent)
    {
        // To support deep linking, we need to make sure that the client can get access to
        // the last sent intent. The clients access this through a JNI api that allows them
        // to get the intent set on launch. To update that after launch we have to manually
        // replace the intent with the one caught here.
        setIntent(intent);
        mUnityPlayer.newIntent(intent);
    }

    // Quit Unity
    @Override protected void onDestroy ()
    {
        mUnityPlayer.destroy();
        super.onDestroy();
    }

    // Pause Unity
    @Override protected void onPause()
    {
        super.onPause();
        mUnityPlayer.pause();
    }

    // Resume Unity
    @Override protected void onResume()
    {
        super.onResume();
        mUnityPlayer.resume();
    }

    // Low Memory Unity
    @Override public void onLowMemory()
    {
        super.onLowMemory();
        mUnityPlayer.lowMemory();
    }

    // Trim Memory Unity
    @Override public void onTrimMemory(int level)
    {
        super.onTrimMemory(level);
        if (level == TRIM_MEMORY_RUNNING_CRITICAL)
        {
            mUnityPlayer.lowMemory();
        }
    }

    // This ensures the layout will be correct.
    @Override public void onConfigurationChanged(Configuration newConfig)
    {
        super.onConfigurationChanged(newConfig);
        mUnityPlayer.configurationChanged(newConfig);
    }

    // Notify Unity of the focus change.
    @Override public void onWindowFocusChanged(boolean hasFocus)
    {
        super.onWindowFocusChanged(hasFocus);
        mUnityPlayer.windowFocusChanged(hasFocus);
    }

    // For some reason the multiple keyevent type is not supported by the ndk.
    // Force event injection by overriding dispatchKeyEvent().
    @Override public boolean dispatchKeyEvent(KeyEvent event)
    {
        if (event.getAction() == KeyEvent.ACTION_MULTIPLE)
            return mUnityPlayer.injectEvent(event);
        return super.dispatchKeyEvent(event);
    }

    // Pass any events not handled by (unfocused) views straight to UnityPlayer
    @Override public boolean onKeyUp(int keyCode, KeyEvent event)     { return mUnityPlayer.injectEvent(event); }
    @Override public boolean onKeyDown(int keyCode, KeyEvent event)   { return mUnityPlayer.injectEvent(event); }
    @Override public boolean onTouchEvent(MotionEvent event)          { return mUnityPlayer.injectEvent(event); }
    /*API12*/ public boolean onGenericMotionEvent(MotionEvent event)  { return mUnityPlayer.injectEvent(event); }
}

其中UnityPlayer mUnityPlayer就是Unity最终绘制内容的View（是一个FrameLayout），而UnityPlayerActivity 将这个View设置为自己的根View，进行显示。所以也可以自定义一个任意大小的布局，将mUnityPlayer当做正常的View 添加到布局中，进行自定义大小的控制。
而UnityPlayerActivity 也重写了onResume、onPause等进行了对mUnityPlayer生命周期的管理。

4. Android与Unity跳转

一般情况下，混合开发都是会先启动原生界面，然后通过点击原生的中button根据业务逻辑跳转至包含Unity的Activity。这样我们就不能将UnityPlayerActivity设置为第一个启动的Activity。

取消UnityPlayerActivity默认启动

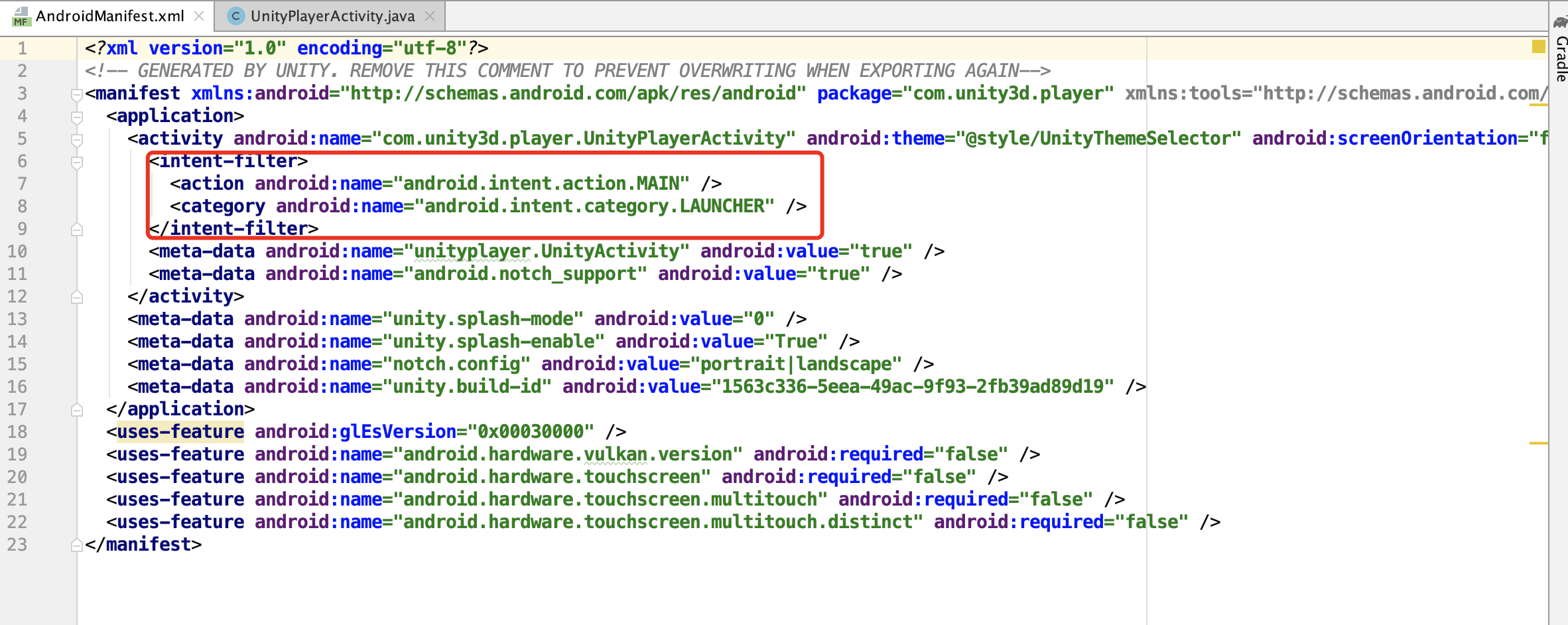

在AndroidManifest文件中删除或注释掉UnityPlayerActivity配置的下intent-filter

小伙伴如果之前已经在Unity中导入了其他Android插件，那么这个AndroidManifest中显示的Activity应该是插件中自定义的Activity，而不是UnityPlayerActivity，注释掉相应的代码即可。

页面跳转
通过常规的startActivity即可启动UnityPlayerActivity

findViewById(R.id.btn_button1).setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View view) {

        Intent intent = new Intent(HomeActivity.this, UnityPlayerActivity.class);

        startActivity(intent);

    }
});

但是，当你finish到这个UnityPlayerActivity时你会发现，即使还有Activity显示，应用还是自动关闭了。这个问题是因为在UnityPlayerActivity中的onDestroy方法中调用了mUnityPlayer中destroy方法。

// Quit Unity
@Override protected void onDestroy ()
{
    mUnityPlayer.destroy();
    super.onDestroy();
}

我们点进mUnityPlayer.destroy()看一下

public void destroy() {
    //...省略无用代码
    if (this.mProcessKillRequested) {
        if (this.m_UnityPlayerLifecycleEvents != null) {
            this.m_UnityPlayerLifecycleEvents.onUnityPlayerQuitted();
        } else {
            this.onUnityPlayerQuitted();
        }

        Process.killProcess(Process.myPid()); // 结束自己的进程
    }

    unloadNative();
}

发现在mProcessKillRequested 为true的时候，会进行一个杀自己进程的操作，而我们一般app都是一个进程，就会导致我们的app被kill掉。
解决办法就是在AndroidManifest配置一下UnityPlayerActivity，UnityPlayerActivity以一个新的进程启动。

1	android:process=":e.unitry3d"

Android多进程总结一:生成多进程(android:process属性)

5. Android 自定义Unity显示形式

由于业务的需求决定，混合开发中的Unity不一定为全屏幕显示或者可能需要多个Unity界面，那么就需要继承UnityPlayerActivity进行自定义一个显示Unity的界面。

当我们的业务需求决定了我们需要实现一个UnityPlayerActivity的子类进行扩展功能的时候，需要进行以下步骤：

禁止UnityPlayerActivity中添加mUnityPlayer
在UnityPlayerActivity的onCreate中注释setContentView和requestFocus代码,因为要在子类中按需加载mUnityPlayer，防止多次设置View，就注释掉父类的相关代码。

// Setup activity layout
@Override protected void onCreate(Bundle savedInstanceState)
{
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    super.onCreate(savedInstanceState);

    String cmdLine = updateUnityCommandLineArguments(getIntent().getStringExtra("unity"));
    getIntent().putExtra("unity", cmdLine);

    mUnityPlayer = new UnityPlayer(this, this);
    //setContentView(mUnityPlayer);
    //mUnityPlayer.requestFocus();
}

实现子类，将mUnityPlayer设置给布局

public class UnityActivity extends UnityPlayerActivity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        setContentView(R.layout.layout_unity);

        FrameLayout frameLayout = findViewById(R.id.framelayout);
        frameLayout.addView(mUnityPlayer);

        mUnityPlayer.requestFocus();
    }

}

或

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    setContentView(mUnityPlayer);
    mUnityPlayer.requestFocus();

}

这个地方需要注意两点：1.如果之前导入过插件，这里一定要继承自插件中实现的UnityPlayerActivity子类，否则，插件的方法不会被调用。2. 记得要将实现的Activity配置为新的进程。

如果想启动不同的Unity界面，也不需要实现多个Activity子类，和Unity开发约定下通信规则，确定好发送什么参数启动什么页面，在Activity启动后调用相关的方法，发送约定好的参数即可。

例如：
启动界面：

findViewById(R.id.btn_button1).setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View view) {

        Intent intent = new Intent(HomeActivity.this, UnityActivity.class);
        intent.putExtra("panelName","LunchPanel");
        startActivity(intent);
    }
});

UnityActivity

protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    setContentView(mUnityPlayer);
    mUnityPlayer.requestFocus();

    String panelName = getIntent().getStringExtra("panelName");

    UnityPlayer.UnitySendMessage("UIRoot","openPanel",panelName);//unity方法
}

6. 使用Fragment当做Unity显示的载体

目前我试出来的方案就是将mUnityPlayer在Fragment将要挂载的Activity中进行创建并进行生命周期的管理。

Activity

public class HomeActivity extends FragmentActivity {
    protected UnityPlayer mUnityPlayer;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.home_activity);
        mUnityPlayer = new UnityPlayer(this, null);
        FragmentManager fragmentManager = getSupportFragmentManager();
        fragmentManager.beginTransaction().add(R.id.fl,new UnityFragment(mUnityPlayer)).commit();


    }


    @Override protected void onNewIntent(Intent intent)
    {
        // To support deep linking, we need to make sure that the client can get access to
        // the last sent intent. The clients access this through a JNI api that allows them
        // to get the intent set on launch. To update that after launch we have to manually
        // replace the intent with the one caught here.
        setIntent(intent);
        mUnityPlayer.newIntent(intent);
    }

    // Quit Unity
    @Override protected void onDestroy ()
    {
        mUnityPlayer.destroy();
        //mUnityPlayer.unloadNative();
        super.onDestroy();
    }

    // Pause Unity
    @Override protected void onPause()
    {
        super.onPause();
        mUnityPlayer.pause();
    }

    // Resume Unity
    @Override protected void onResume()
    {
        super.onResume();
        mUnityPlayer.resume();
    }

    // Low Memory Unity
    @Override public void onLowMemory()
    {
        super.onLowMemory();
        mUnityPlayer.lowMemory();
    }

    // Trim Memory Unity
    @Override public void onTrimMemory(int level)
    {
        super.onTrimMemory(level);
        if (level == TRIM_MEMORY_RUNNING_CRITICAL)
        {
            mUnityPlayer.lowMemory();
        }
    }

    // This ensures the layout will be correct.
    @Override public void onConfigurationChanged(Configuration newConfig)
    {
        super.onConfigurationChanged(newConfig);
        mUnityPlayer.configurationChanged(newConfig);
    }

    // Notify Unity of the focus change.
    @Override public void onWindowFocusChanged(boolean hasFocus)
    {
        super.onWindowFocusChanged(hasFocus);
        mUnityPlayer.windowFocusChanged(hasFocus);
    }

    // For some reason the multiple keyevent type is not supported by the ndk.
    // Force event injection by overriding dispatchKeyEvent().
    @Override public boolean dispatchKeyEvent(KeyEvent event)
    {
        if (event.getAction() == KeyEvent.ACTION_MULTIPLE)
            return mUnityPlayer.injectEvent(event);
        return super.dispatchKeyEvent(event);
    }

    // Pass any events not handled by (unfocused) views straight to UnityPlayer
    @Override public boolean onKeyUp(int keyCode, KeyEvent event)     { return mUnityPlayer.injectEvent(event); }
    @Override public boolean onKeyDown(int keyCode, KeyEvent event)   { return mUnityPlayer.injectEvent(event); }
    @Override public boolean onTouchEvent(MotionEvent event)          { return mUnityPlayer.injectEvent(event); }
    /*API12*/ public boolean onGenericMotionEvent(MotionEvent event)  { return mUnityPlayer.injectEvent(event); }

}

fragment

public class UnityFragment extends Fragment{

    private UnityPlayer mUnityPlayer;


    public UnityFragment(UnityPlayer unityPlayer) {
        mUnityPlayer = unityPlayer;
    }


    @Nullable
    @Override
    public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {

        return mUnityPlayer;
    }

}

7. Unity与Android之间的通讯

此内容网络上已有较多文章，本文不再叙述。

8. 注意事项

当Unity与Android同时开发时，每次从Unity导出新的项目覆盖之前的老代码的时候主launcher中的AndroidManifest文件会被重置，导出前务必要备份。

文章可能因为个人能力原因出现错误，忘谅解。希望能够指出。

Unity2019与Android混合开发

http://blog.kalac.cn/2021/03/26/Unity2019与Android混合开发/

作者

Hanani

发布于

2021-03-26

更新于

2022-06-16

许可协议

#Android Unity

Unity2019与Android混合开发

0. 开始前的版本对齐

1. Unity – 准备项目

2. Android 打开项目

3. Android 项目结构

4. Android与Unity跳转

5. Android 自定义Unity显示形式

6. 使用Fragment当做Unity显示的载体

7. Unity与Android之间的通讯

8. 注意事项

作者

发布于

更新于

许可协议

喜欢这篇文章？打赏一下作者吧

目录

标签
